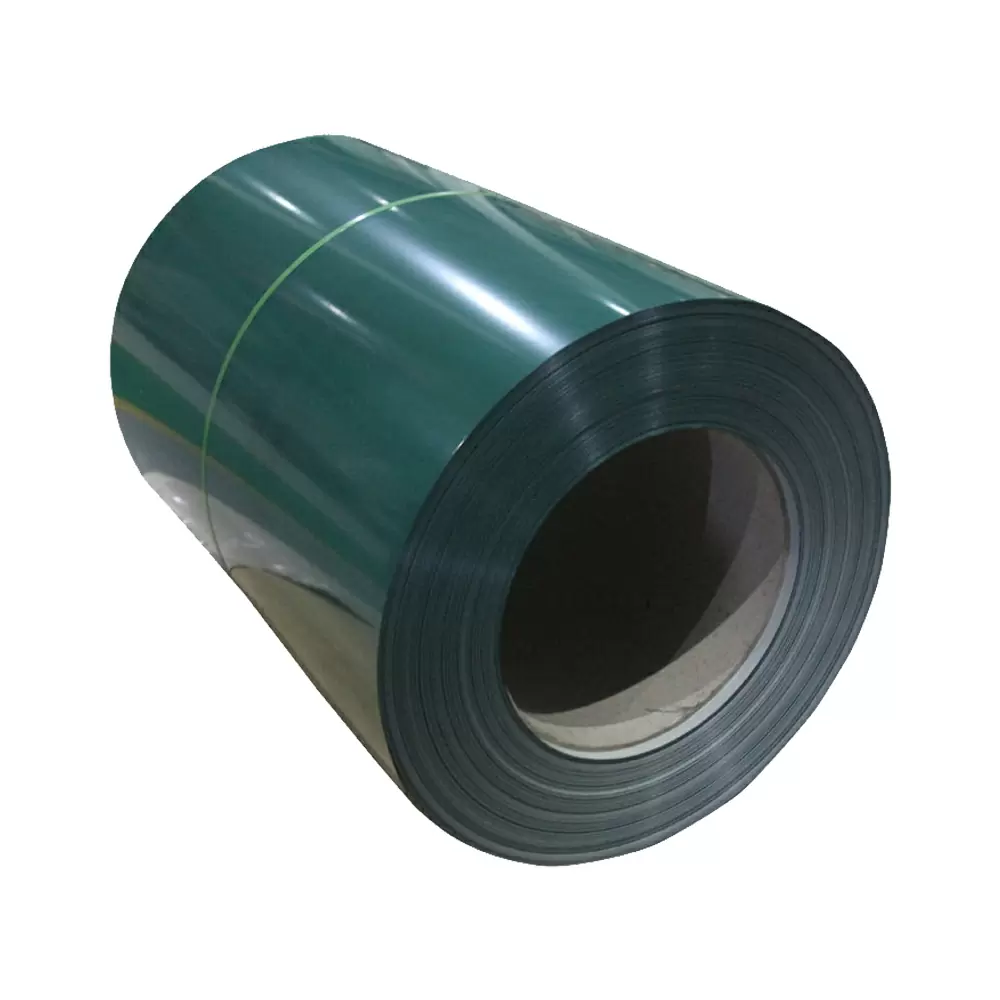

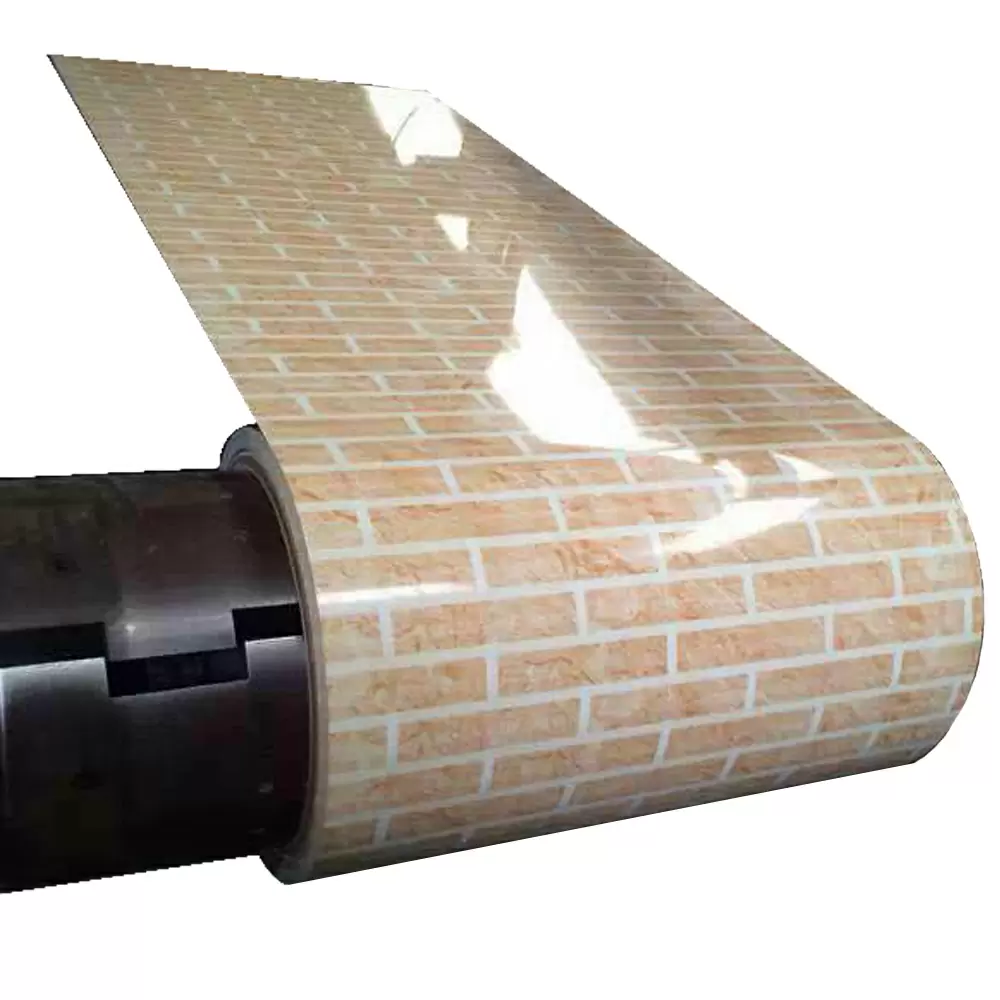

Prepainted Ppgi Z100 Cold Rolled Steel
更新时间:2025-08-14

Color coated steel coil is a product made of cold-rolled steel coil and (aluminum) galvanized steel coil after surface chemicaltreatment, coating (roll coating) or composite organic film (PVC film, etc.), and then baking and curing. It not only has the properties of high mechanical strength and easy forming of steel materials, but also has good decoration and corrosion resistance of coating materials.



Color coated steel coil is mainly divided into three parts: construction, household appliances and transportation.

Building is generally used to build the roof, wall and door of industrial and commercial buildings such as steel structure workshop, airport, warehouse and freezer.
Household appliances are used in the production of refrigerators and large air conditioning systems, freezers, toasters, furniture, etc.

Transportation industry is mainly used for oil pan, automobile interior parts, etc.


Product Parameters

GradeSGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z,SGCE/DX54D+Z, SGCH.......
Thickness0.12-2.0mm
ToleranceThickness: ± 0.02mm
Width600-1250mm  ( Normal:1250, 1220,1200,1000 mm)
Top/BackPaint10-25 micron(Normal:10-12mic)/5-12 micron(Normal:5-7mic)
Zn coated30-400gsm
Coil weight3-8 tons or as your requirement.
ID508/610 mm
Coating typeTop paint: PE, SMP, HDP, PVDF, PU
Functions: Decorative, Machinability, Weather resistance, Scrath

resistance, Stain resistance, Chemical resistance, Adhesion resistance


Primer paint: Polyurethane, Epoxy, PE
Functions:Machinability, Corrosive resistance, Adhesion, Scrath

resistance


Back paint: Epoxy, Modified polyester
Functions: Scrath resistance, Bending adhesion, Corrosive resistance
Type of
coating
process
Front: Doulbe coated & double drying
Back: Double coated & double drying, single coated & double drying
Double coated & double drying is used for corrugated sheet
Double coated & single drying is for sandwich panel
ApplicationBuilding industry ,structural use, roofing, commercial use ,household
appliance, industry facilities, office buildings
PackingStandard export package .Plastic film in the first layer,second layer is Kraft
paper. Third layer is galvanized sheet.

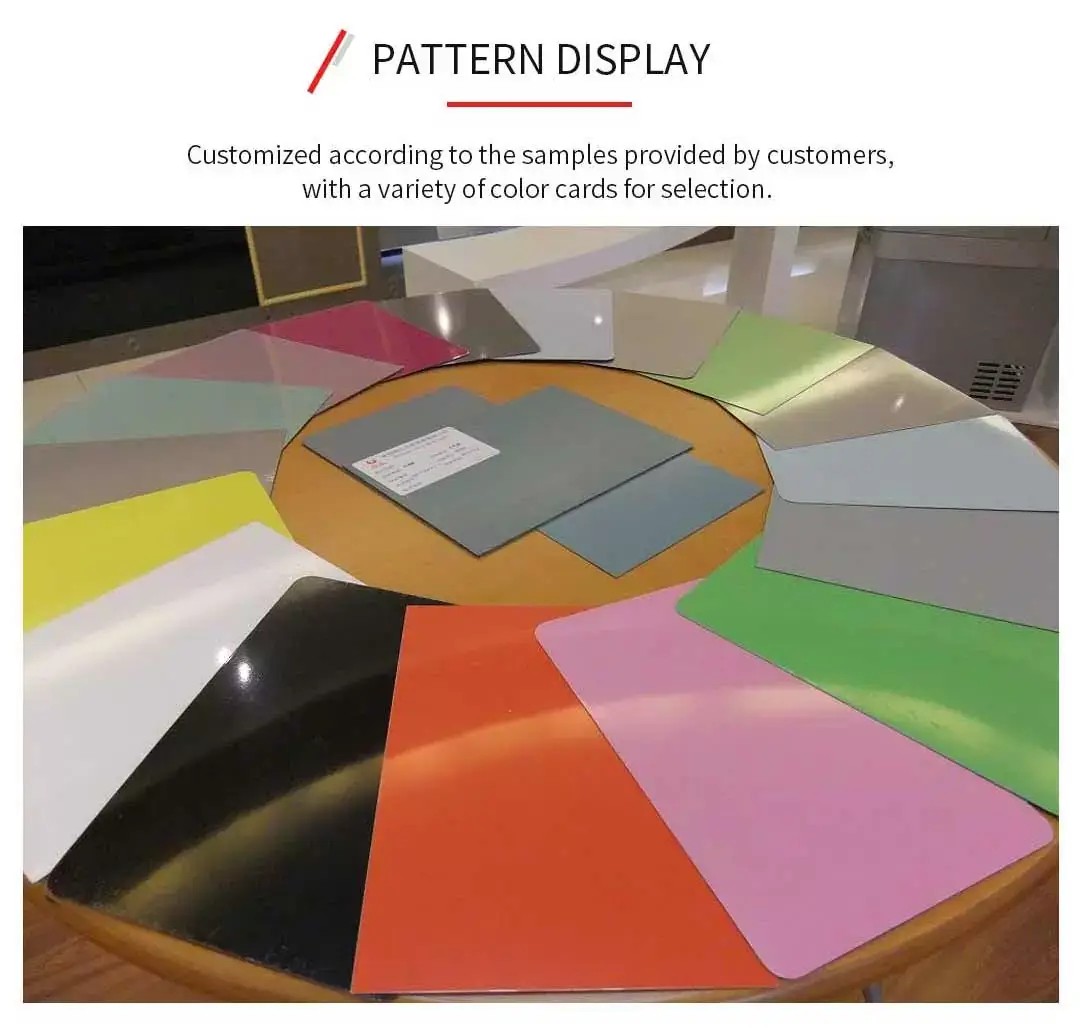

PPGIPPGL00

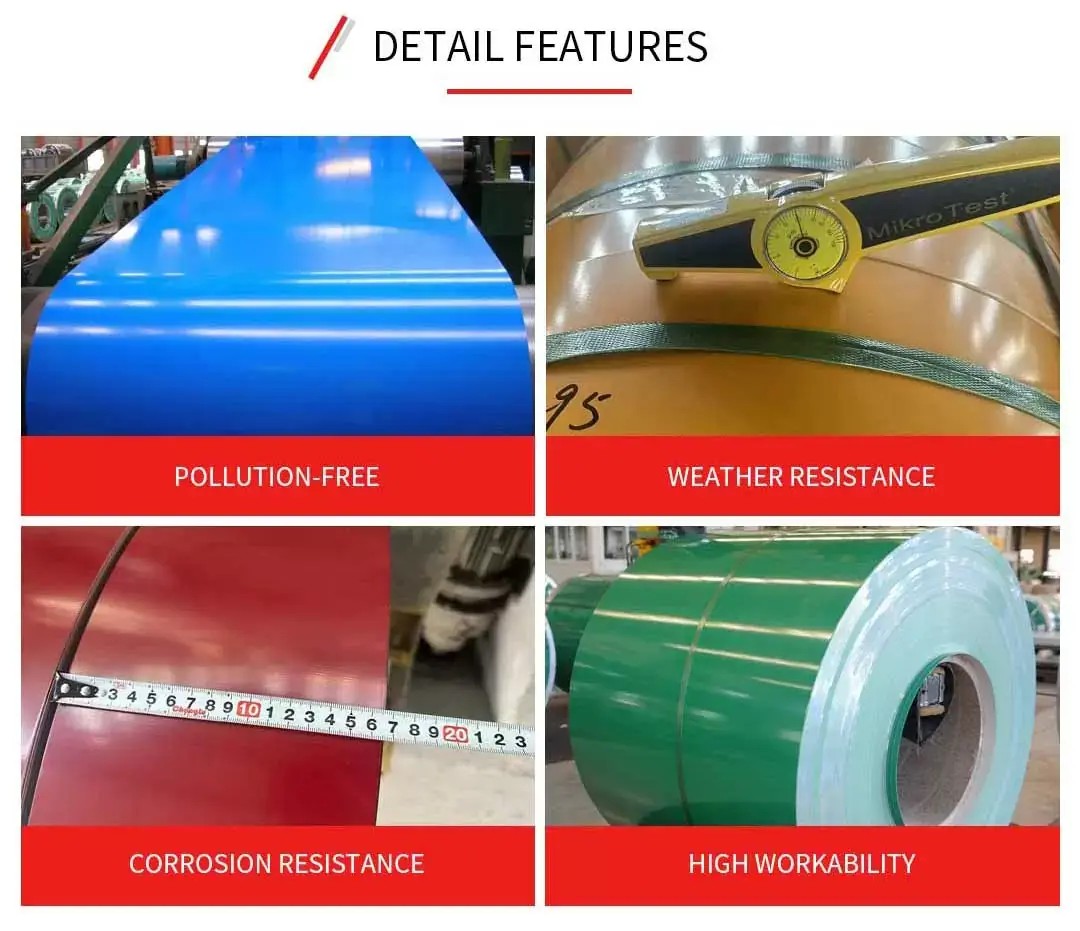

PPGIPPGL1

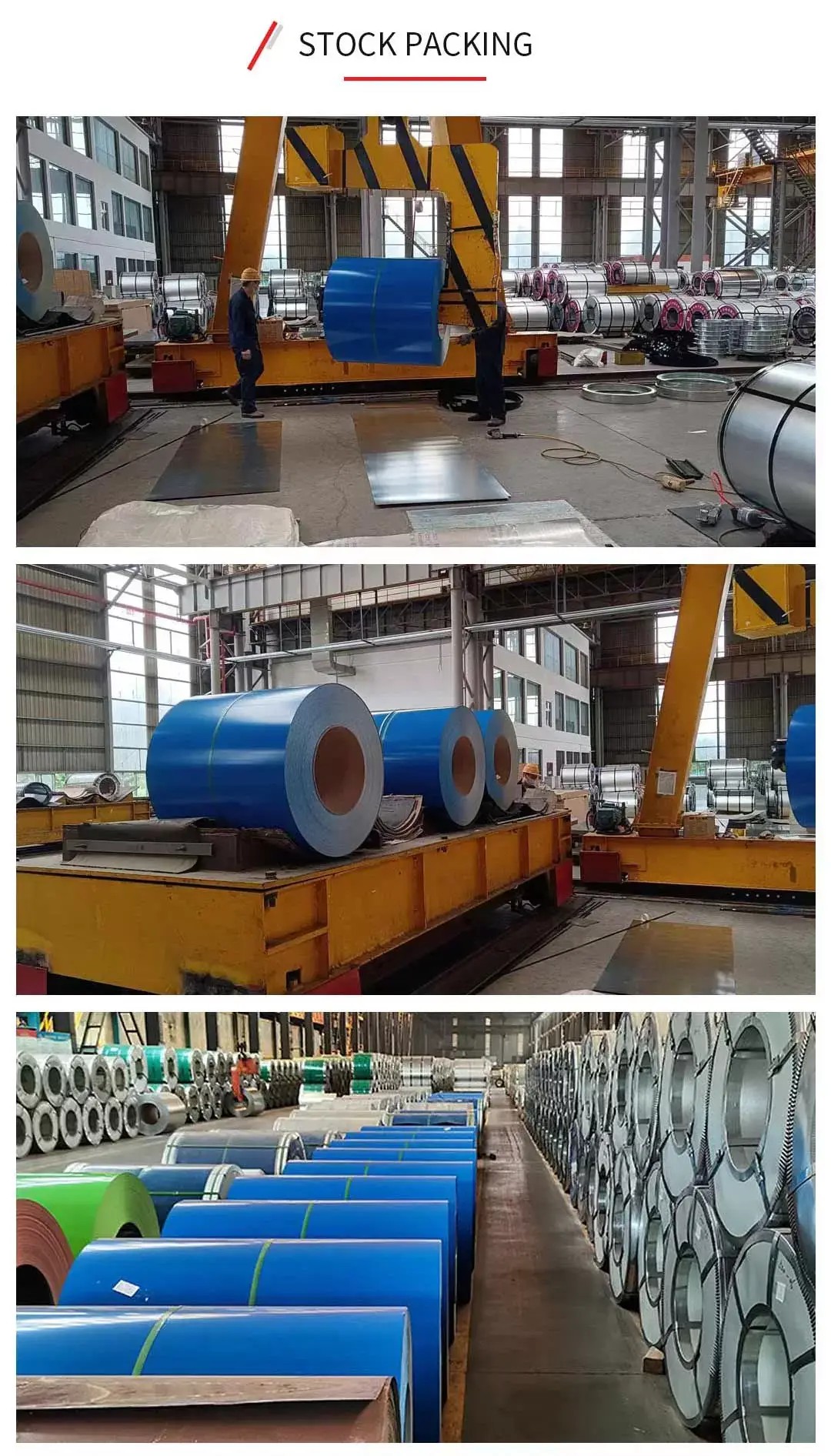

PPGIPPGL2

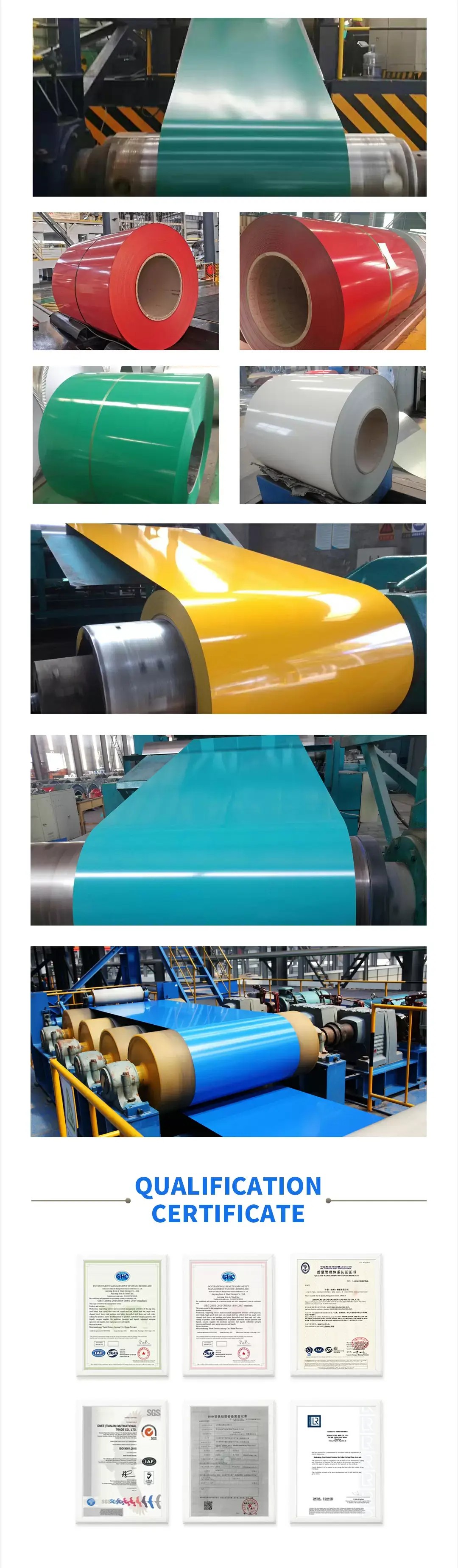

PPGIPPGL
